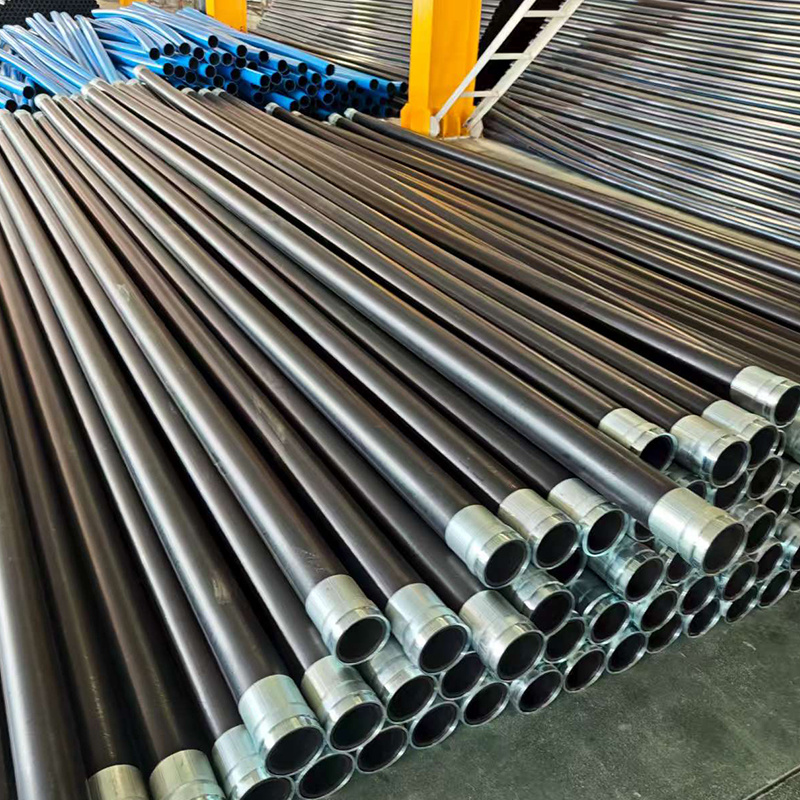

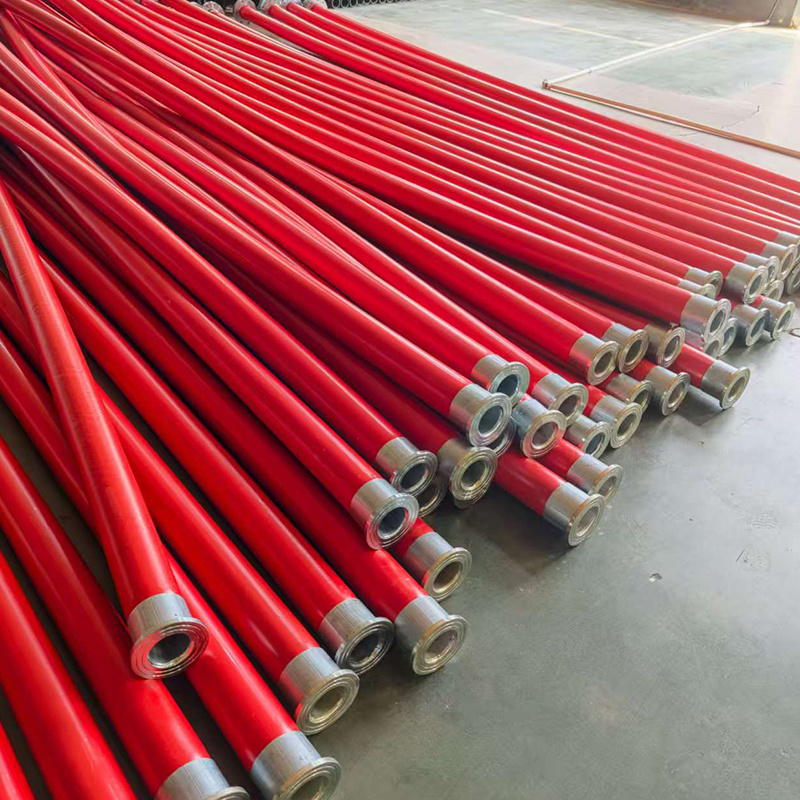

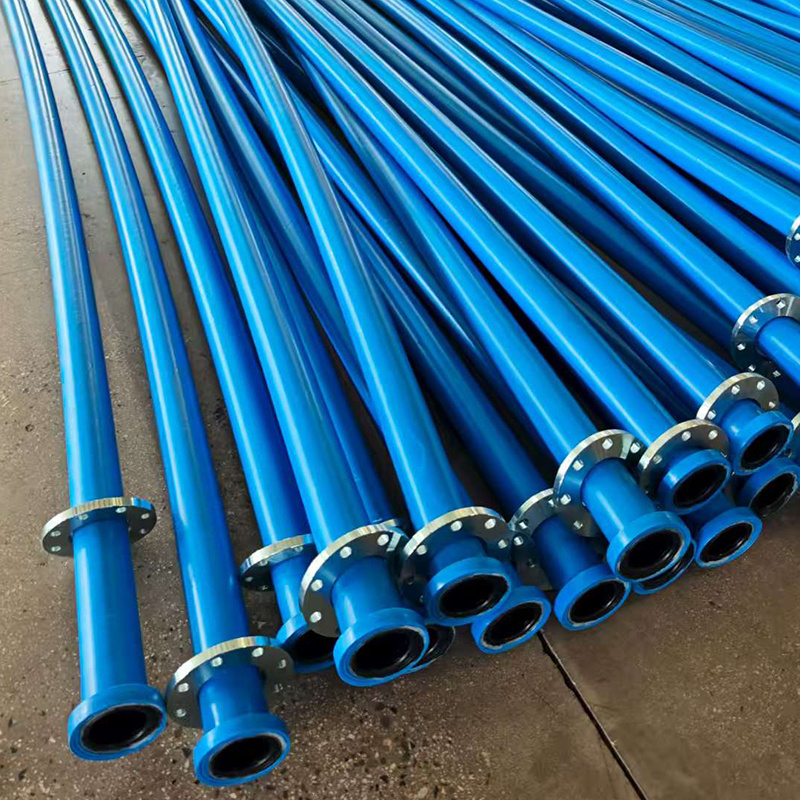

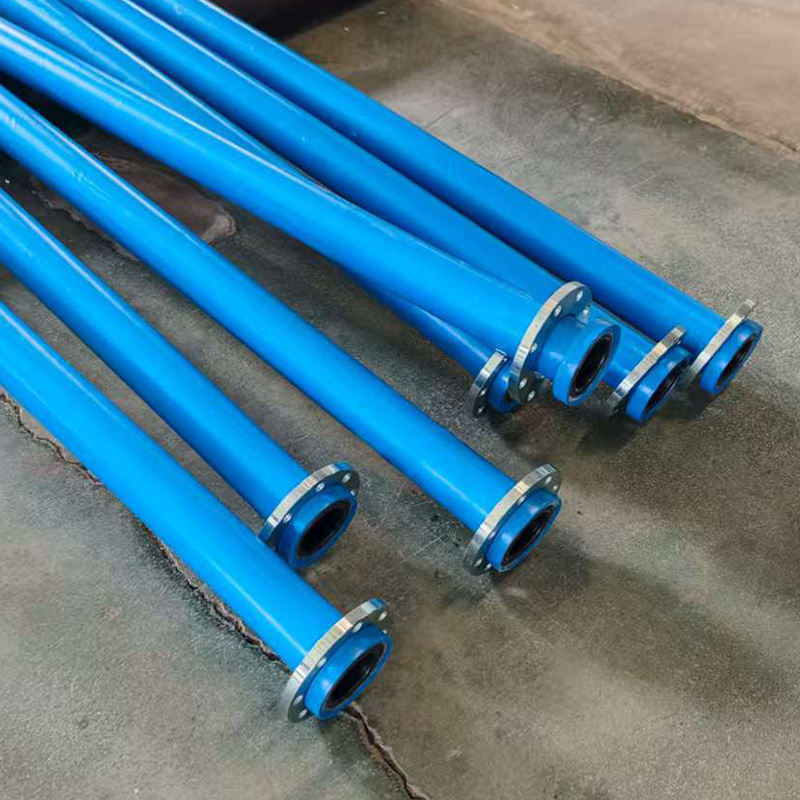

Mining steel wire mesh skeleton polyethylene (PE) composite pipe

Strong corrosion resistance and long service life. Pipe materials have strong corrosion resistance, with a service life 4-6 times that of steel pipes, and overcome the phenomenon of thin pipe walls and shortened service life caused by corrosion and wear of steel pipes.

Category:

E-mail:

service@wanxinpipe.com

Tel/Wechat/WhatsApp:

+8617370959999

Inquire Now

Physical and mechanical properties

Application Symbol	Test Temperature	Short-term Hydrostatic Pressure & Burst Pressure	Test Time (h)	Performance Requirements
SSPE-KML	20℃	Nominal Pressure × 2	1	No rupture, no leakage
	80℃	Nominal Pressure × 2 × 0.6		No rupture, no leakage
	20℃	Burst Pressure ≥ Nominal Pressure × 3		Burst
SSPE-KMQ	20℃	Nominal Pressure × 1.6 × 2	1	No rupture, no leakage
	80℃	Nominal Pressure × 1.6 × 2 × 0.6		No rupture, no leakage
	20℃	Burst Pressure ≥ Nominal Pressure × 3.3 × 1.6		Burst

Performance characteristics

1. Strong corrosion resistance and long service life. Pipe materials have strong corrosion resistance, with a service life 4-6 times that of steel pipes, and overcome the phenomenon of thin pipe walls and shortened service life caused by corrosion and wear of steel pipes.
2. High security performance. Both the inner and outer layers are made of anti-static and flame-retardant modified polyethylene, and their anti-static and flame-retardant properties can meet the AQ1071-2009MT181-88 standard and on-site requirements.
3. Good impact resistance and flexibility
4. Smooth pipe wall with low resistance.
5. The connection method is secure and reliable
6. Lightweight, easy to transport and construct.
7. Green and environmentally friendly. The raw material is PE resin. Clean, non-toxic, does not produce secondary pollution, and can be reused

Technical Parameter

No.	Item	Performance and Parameters
1	Appearance	Clean and smooth inner/outer surfaces, free from bubbles, cracks, obvious scratches, dents, impurities, or uneven coloring
2	Cross-section Perpendicularity	Pipe ends cut square to axis with perpendicularity within ±5°
3	Wall Thickness Deviation	Deviation within limits shown in Tables 2 & 3
4	Wall Thickness	Minimum thickness meets Tables 2 & 3 requirements
5	Nominal OD Deviation	Complies with Tables 2 & 3 requirements
6	Compression Stability	No cracks/damage when compressed to 50% of nominal OD
7	Peel Test	Peel strength ≥100N/cm
8	Groove Test	9 out of 10 samples show no cracks/damage
9	Hydraulic Test	(1) At 20°C, withstands 2.4×nominal pressure for t/h without leakage/damage (2) At 20°C, withstands 5.28×nominal pressure for 1min without leakage/damage
10	Surface Resistance	Water supply/drainage pipes: ≤1.0×10⁴Ω (avg) Gas extraction pipes: ≤1.0×10⁴Ω (avg) Ventilation pipes (negative/positive pressure): ≤1.0×10⁴Ω (avg) Shotcrete pipes: ≤1.0×10⁴Ω (avg) Universal pipes: ≤1.0×10⁴Ω (avg)

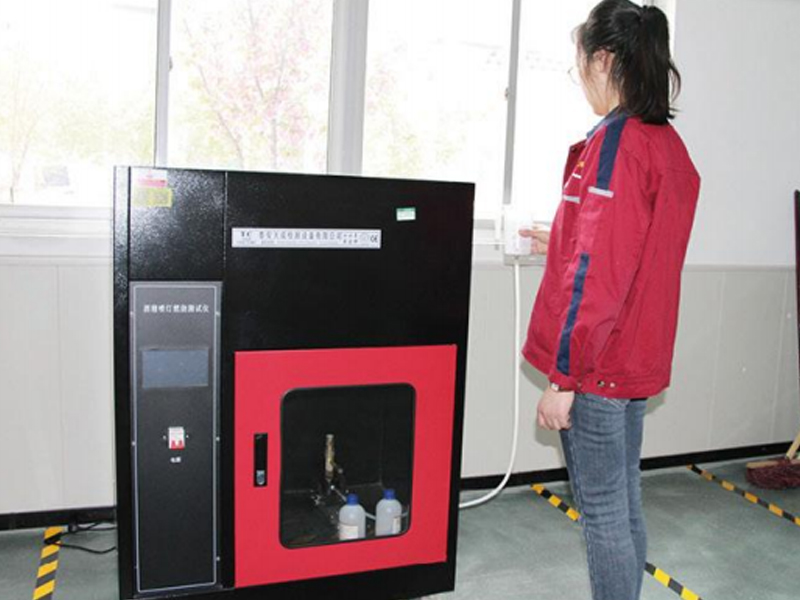

11	Alcohol Lamp Test	(1) 6 samples: avg flame time ≤35s (single ≤105s) (2) 6 samples: avg afterglow time ≤205s (single ≤605s)
12	Negative Pressure Test	Withstands 0.097MPa for 100h without collapse/damage

Mining pipe fittings

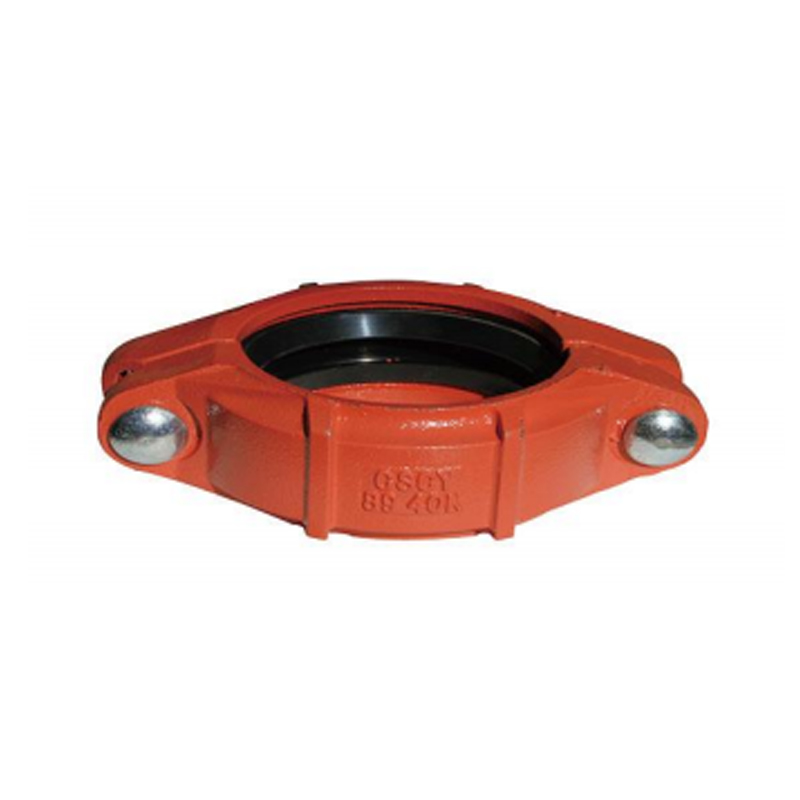

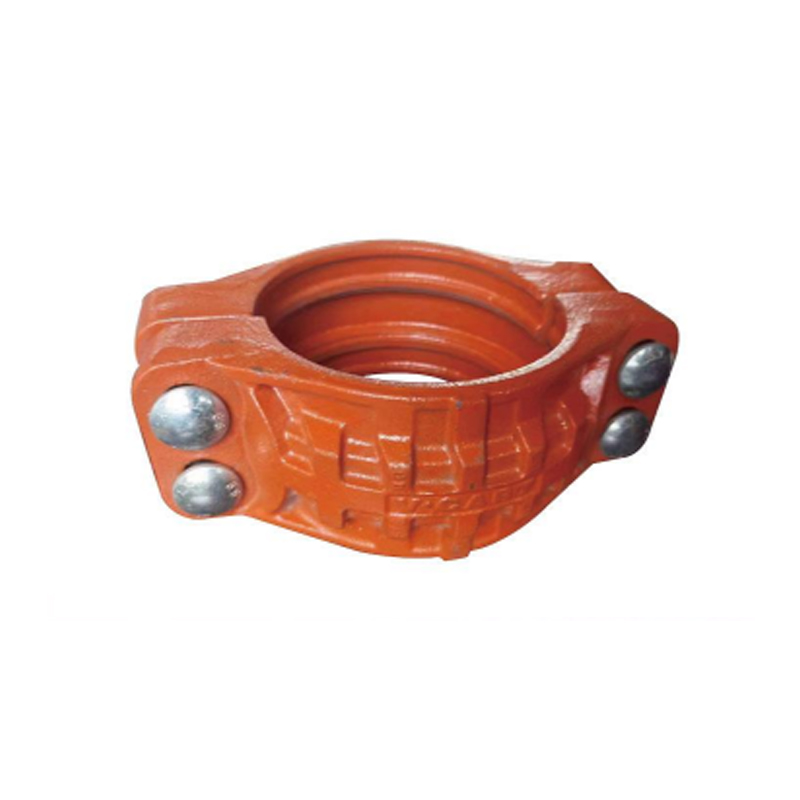

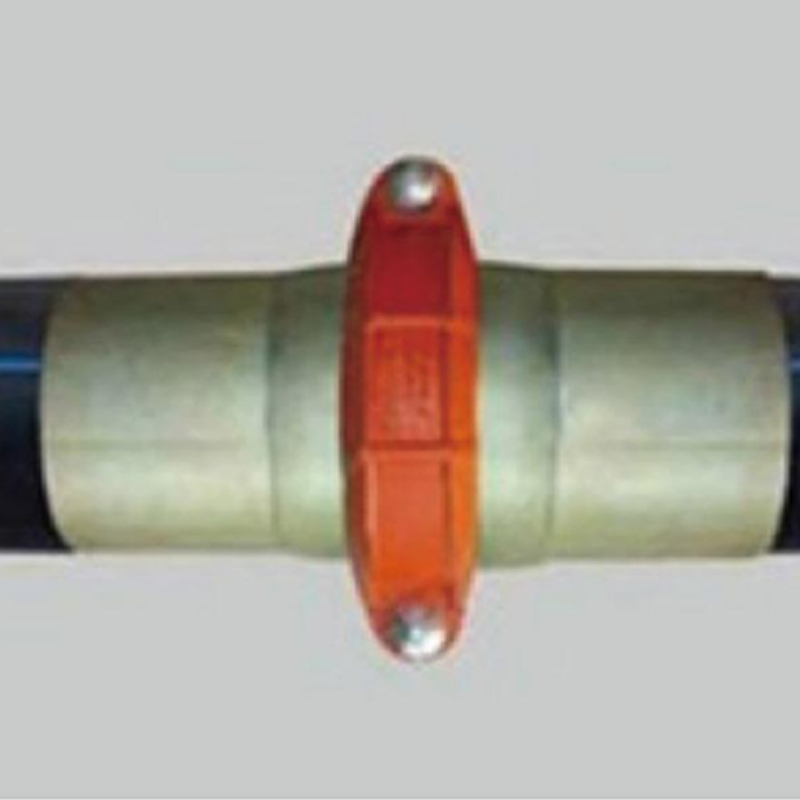

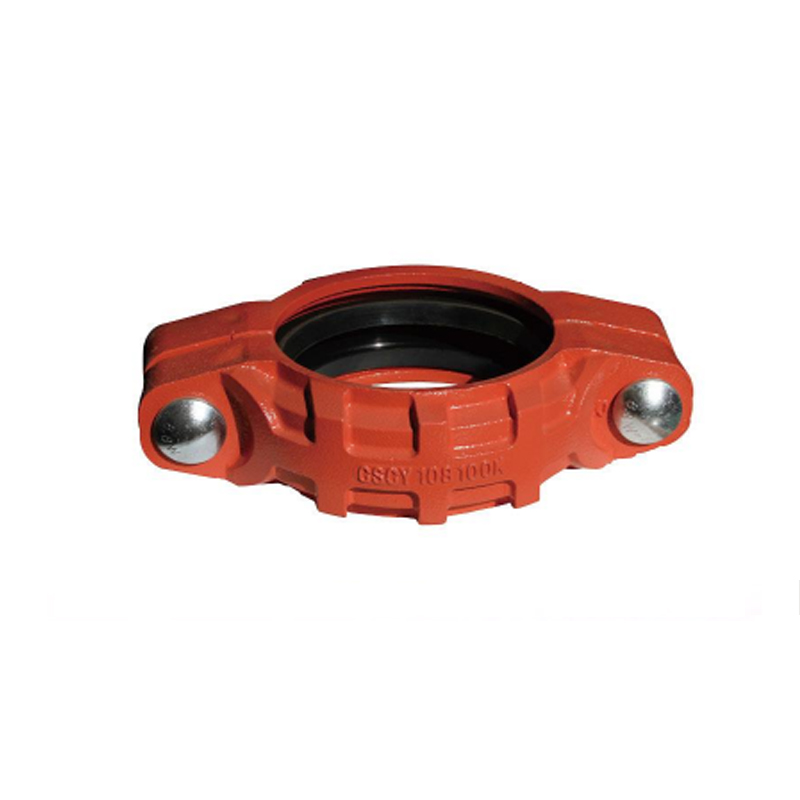

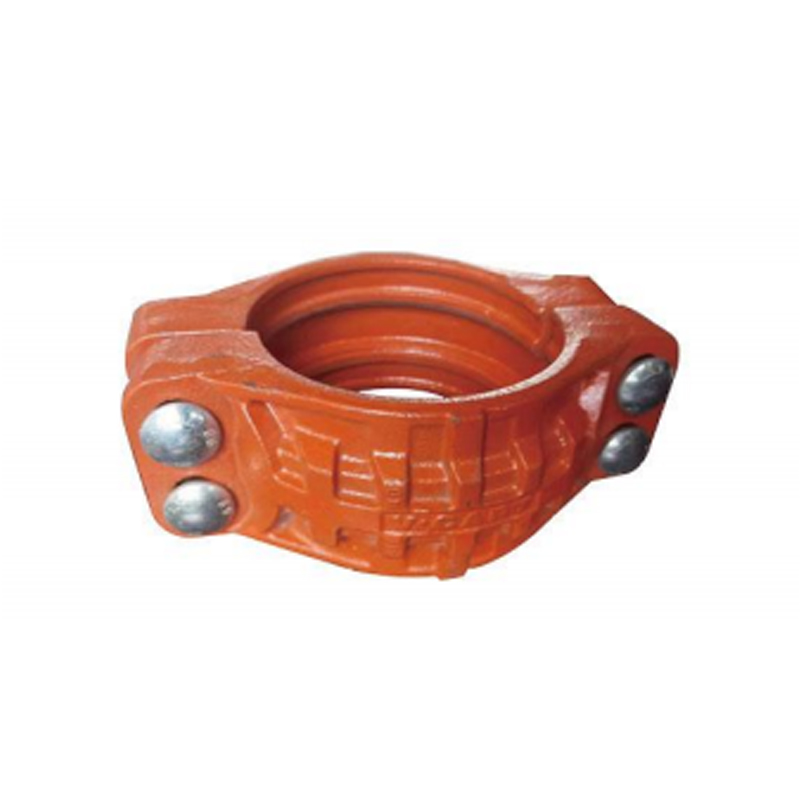

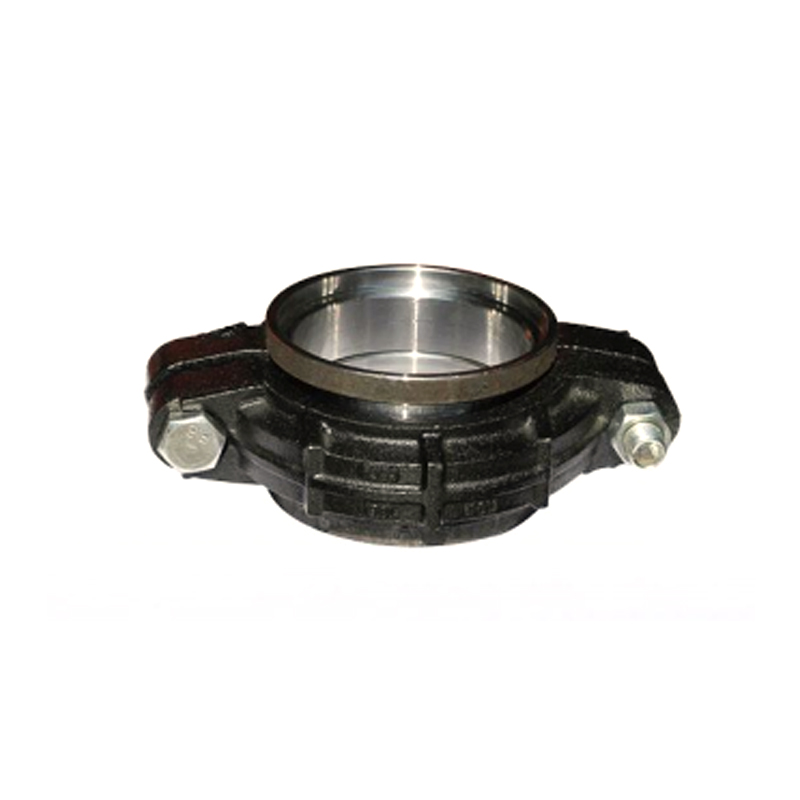

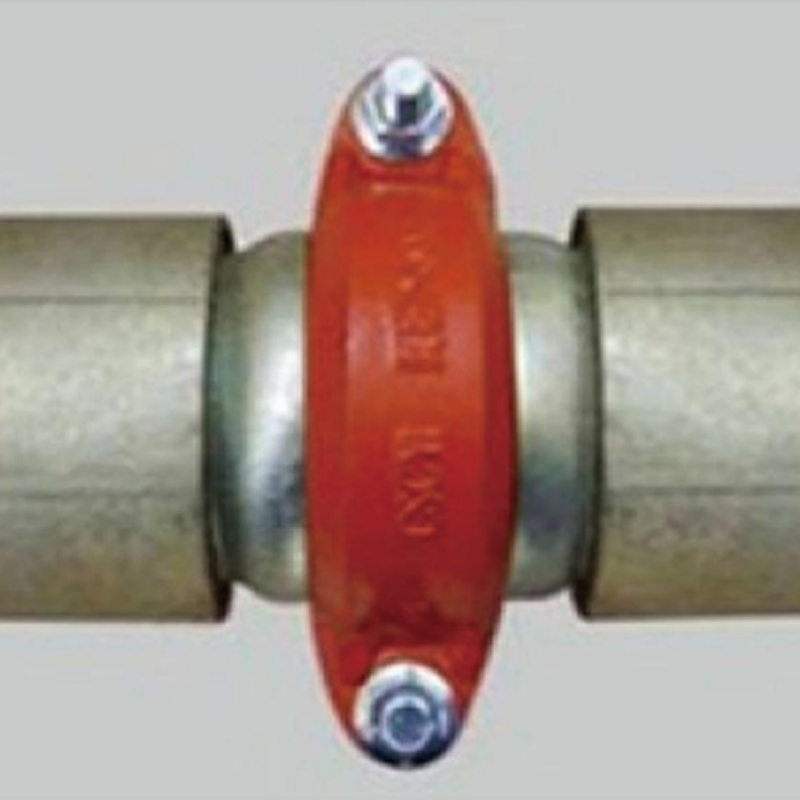

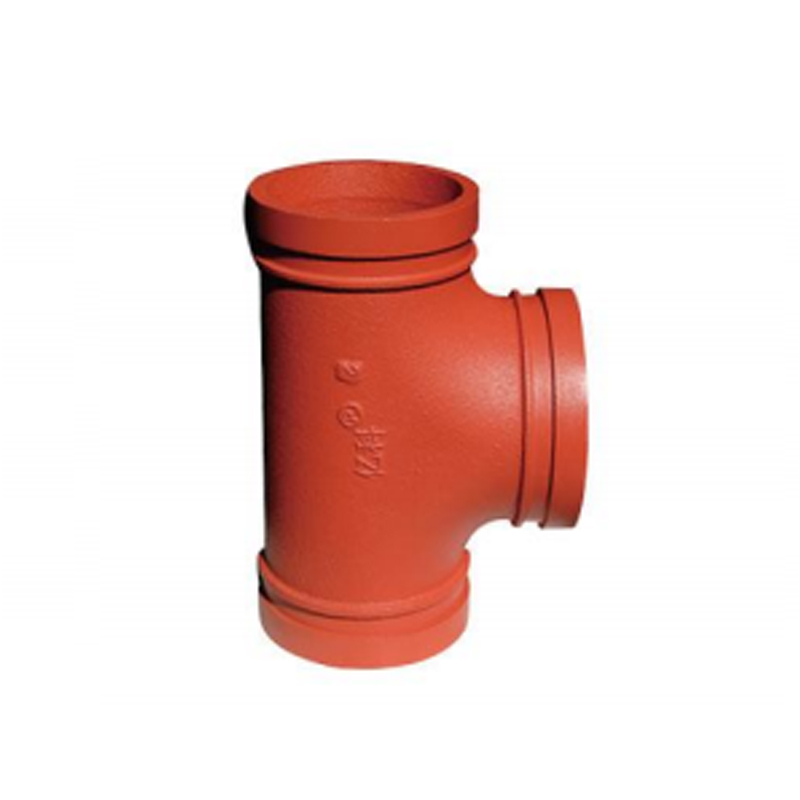

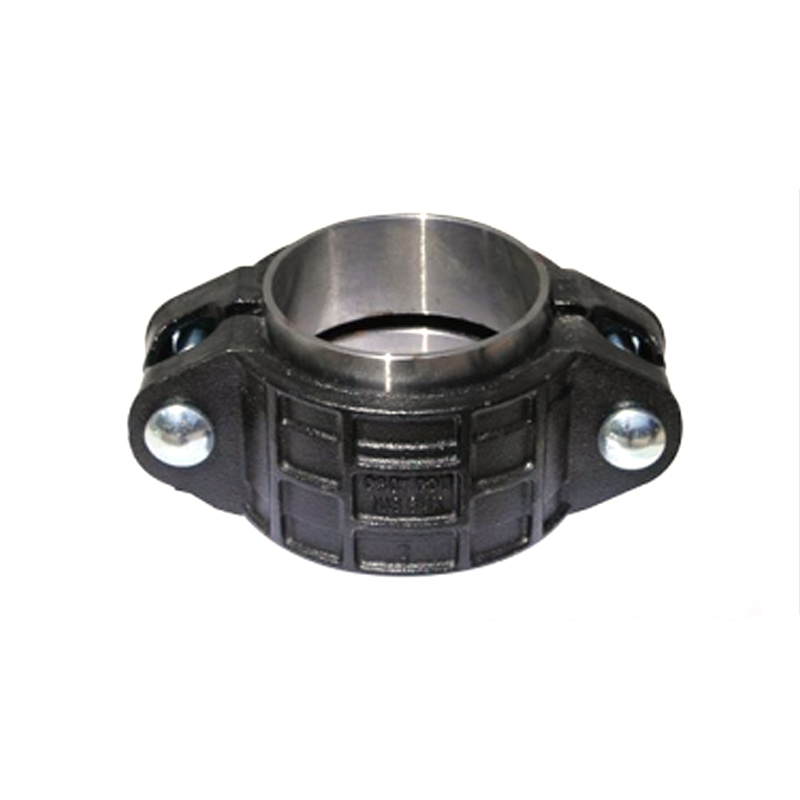

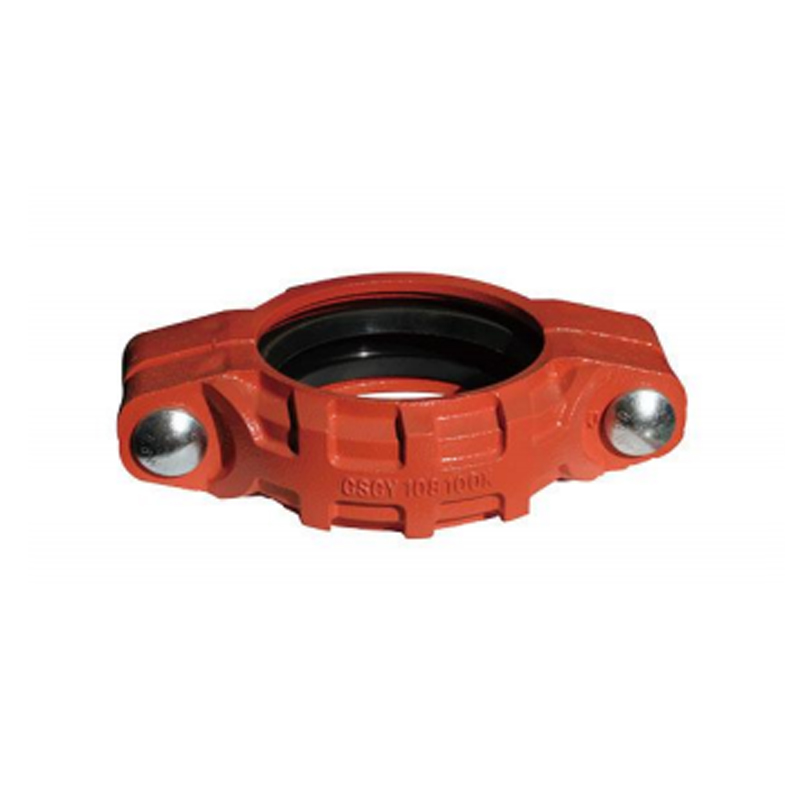

Groove type flexible low-voltage pipe clamp	Groove type flexible high-pressure pipe clamp	Trench tee	KRJ shoulder type pipe clamp

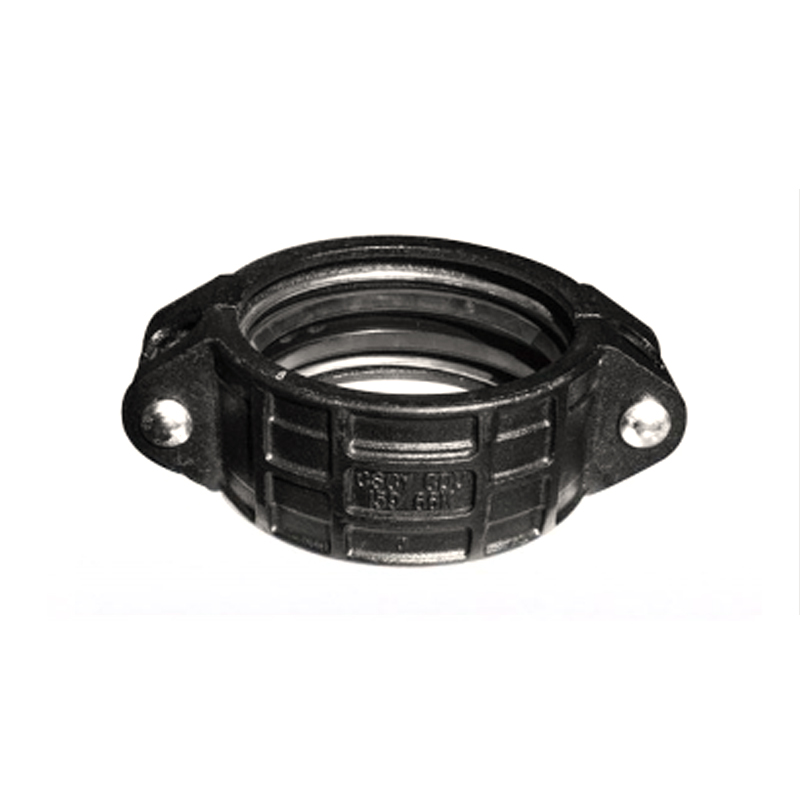

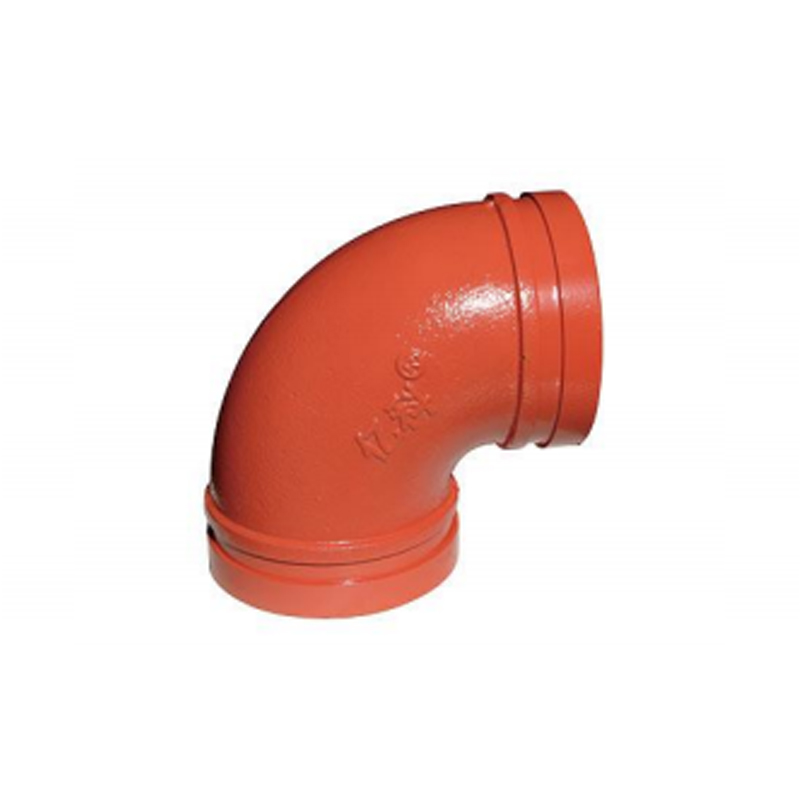

Remote liquid supply ultra-high pressure pipe clamp	Groove bend	CDU circular pipe clamp	KRH short-circuit pipe clamp

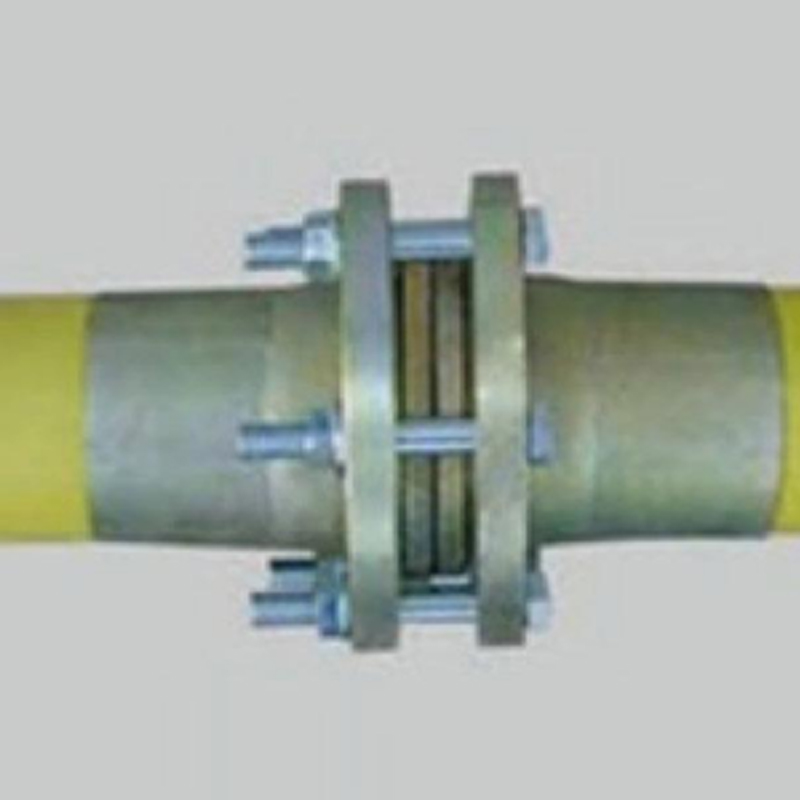

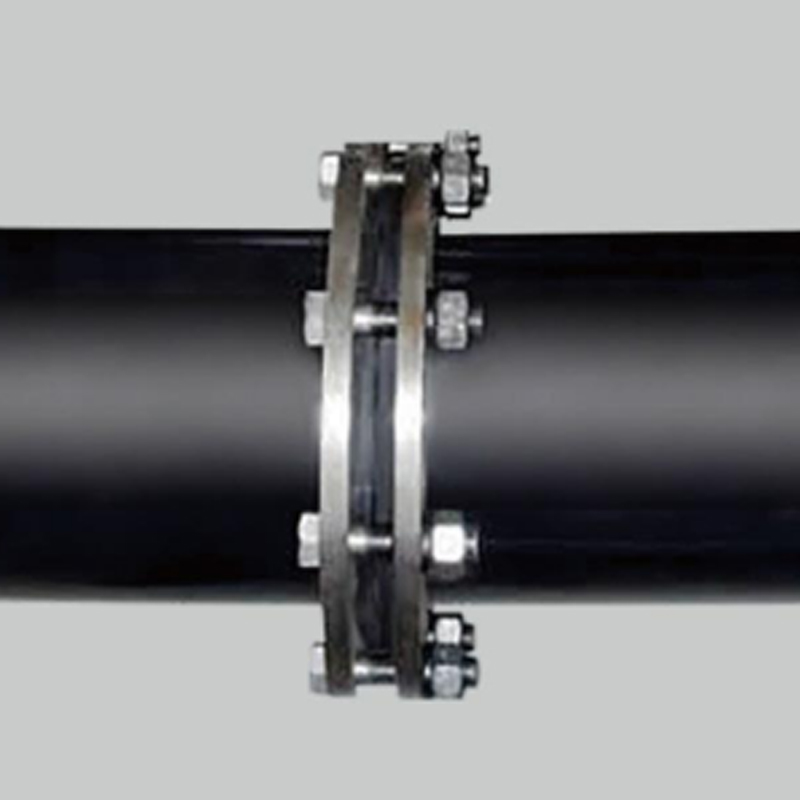

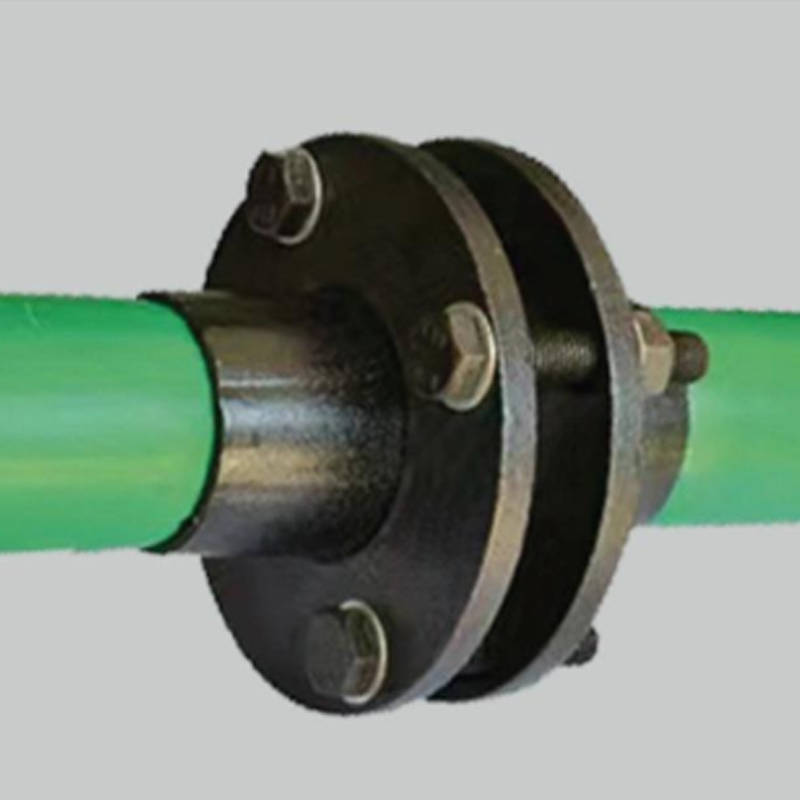

Groove type flexible high-pressure pipe clamp	Remote liquid supply ultra-high pressure pipe clamp	Reducer joint	External locking sleeve flange

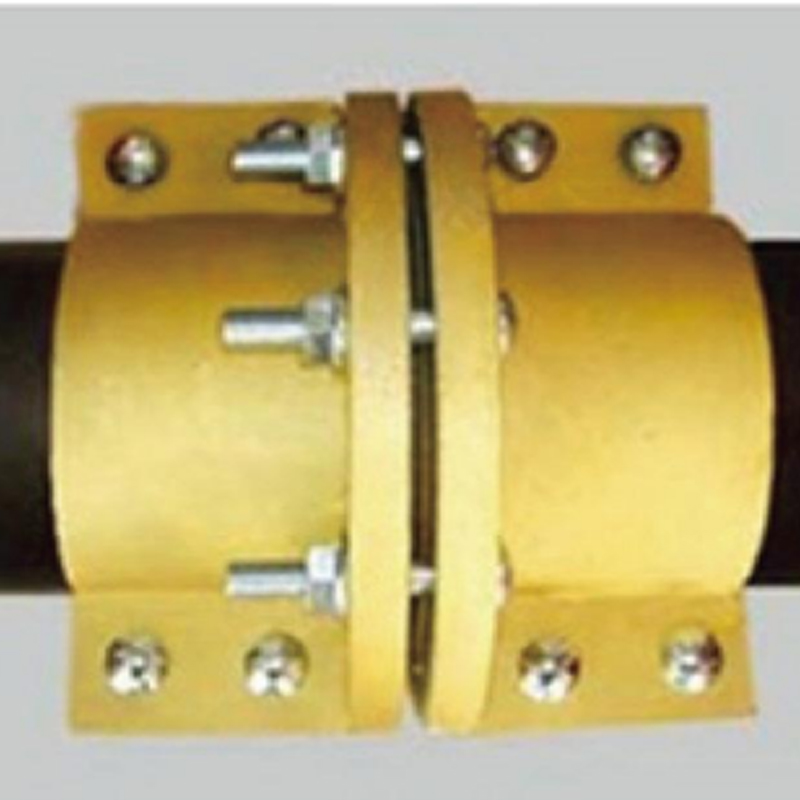

External locking coupling	Internal locking flange	Flanged flange	Embedded split flange
